SHIMANO

SHIMANO XTR HOLLOWTECH II MTB Crankset - 168 mm Q-Factor - 1x12-11-speed - 175 mm

Reference: IFCM91201EXX

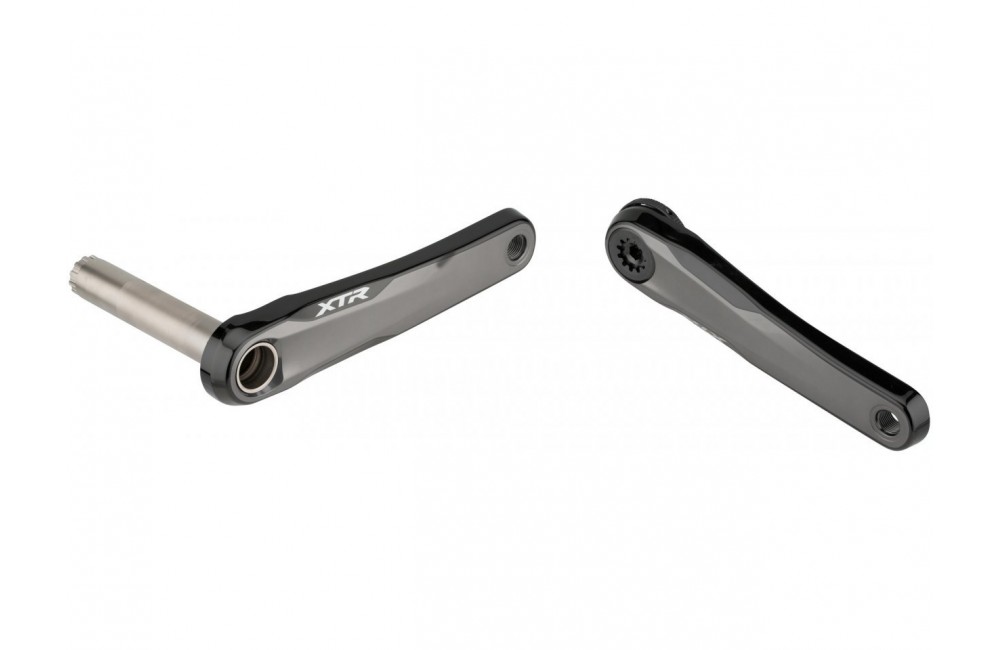

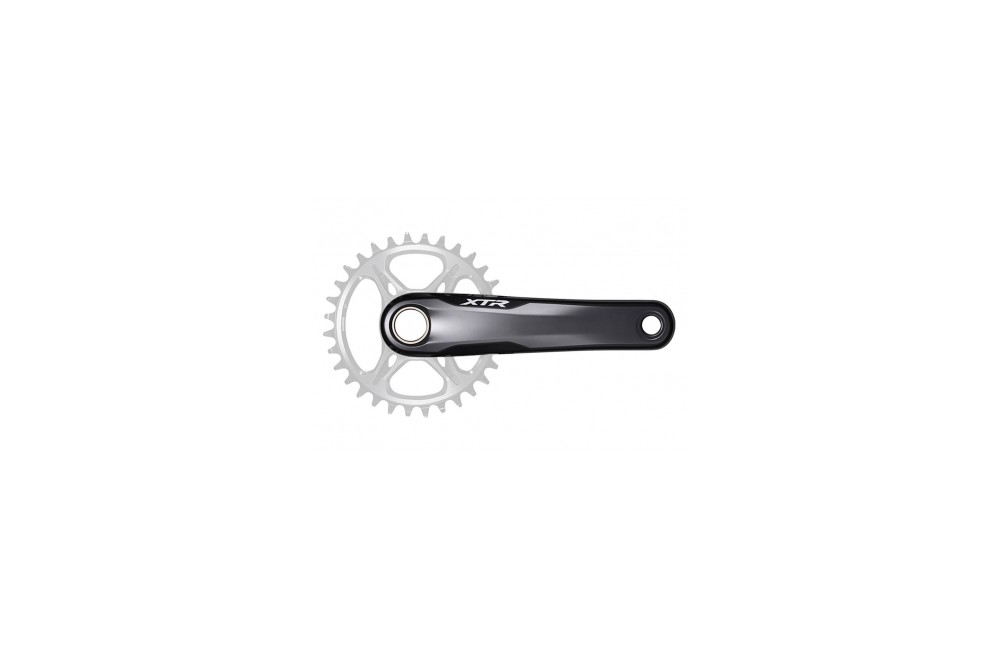

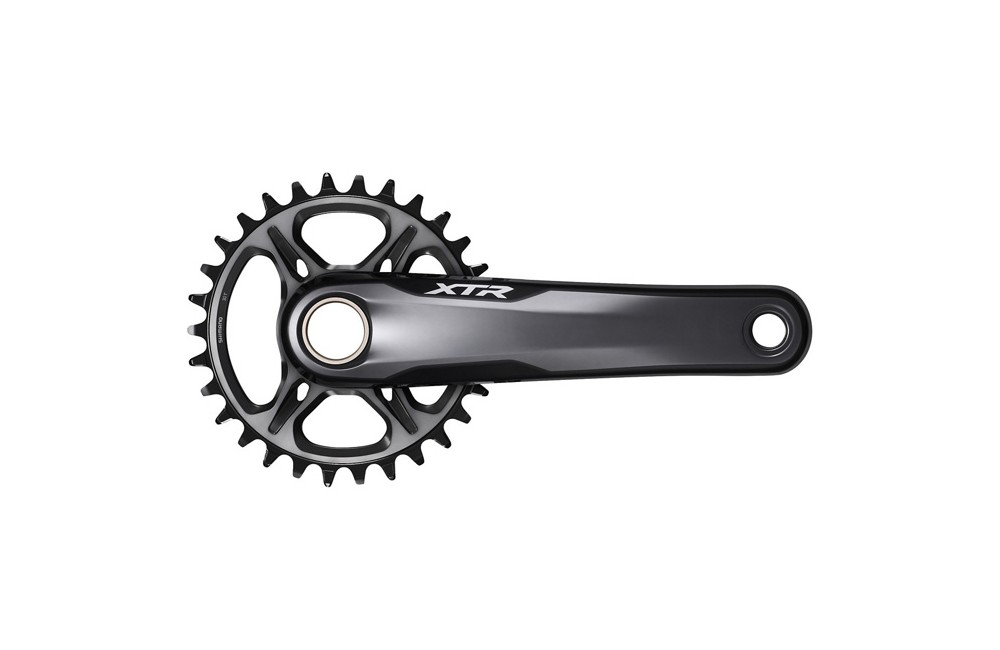

The SHIMANO XTR FC-M9120-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a narrow 168mm Q-factor.

More details

quantity up quantity down

359,01 € 398,90 € -10%

The FC-M9120-1 uses a 52mm chain line and can be converted between 1x12 and 2x12, with 30, 32, 34, 36, and 38T chainrings available. On offer are 165, 170, and 175mm crank arms.

Features of the SHIMANO XTR HOLLOWTECH II MTB Crankset - 168 mm Q-Factor - 1x12/11-speed :

  • Special gear teeth profile designed for MTB riding usage
  • Crankset can be used as common component
  • Smoother driving even over bumpy terrain
  • Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release
  • Exchangeable of single and double chainring by direct mount
  • Q-factor : 168 mm
  • Chainline : 52 mm
  • Average weight : 569 g (38T), 561 g (36T), 562 g (34T), 548 g (32T), 545 g (30T)
  • Chain line (mm) : 52
  • Chain ring combination : 30T, 32T, 34T, 36T, 38T
  • Compatible BB type : Outboard
  • Compatible chain : CN-M9100
  • Crank Arm Length : 175 mm
  • Crank fixing bolt included
  • Gear arms : 4 arm
  • Without chain/bash guard
  • P.C.D. (mm) : Direct
  • Rear speeds : 12
  • Recommended BB_Pressfit : SM-BB94-41A
  • Recommended BB_Threaded (normal) : SM-BB93
  • Threaded BB Shell Width : 68 mm, 73 mm
  • Q-factor (mm) : 168
