Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mm View full size
Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mmShimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mm
Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mm Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mm Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mm


SHIMANO

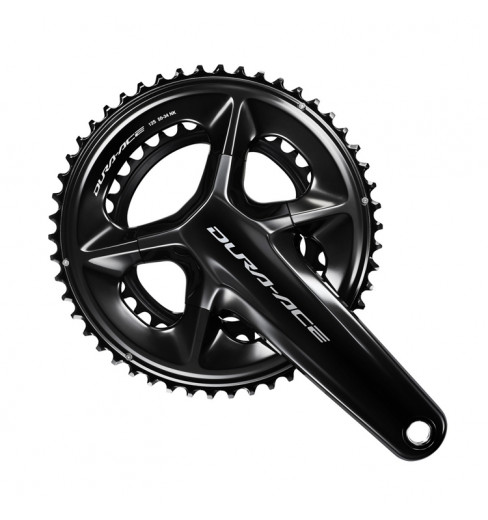

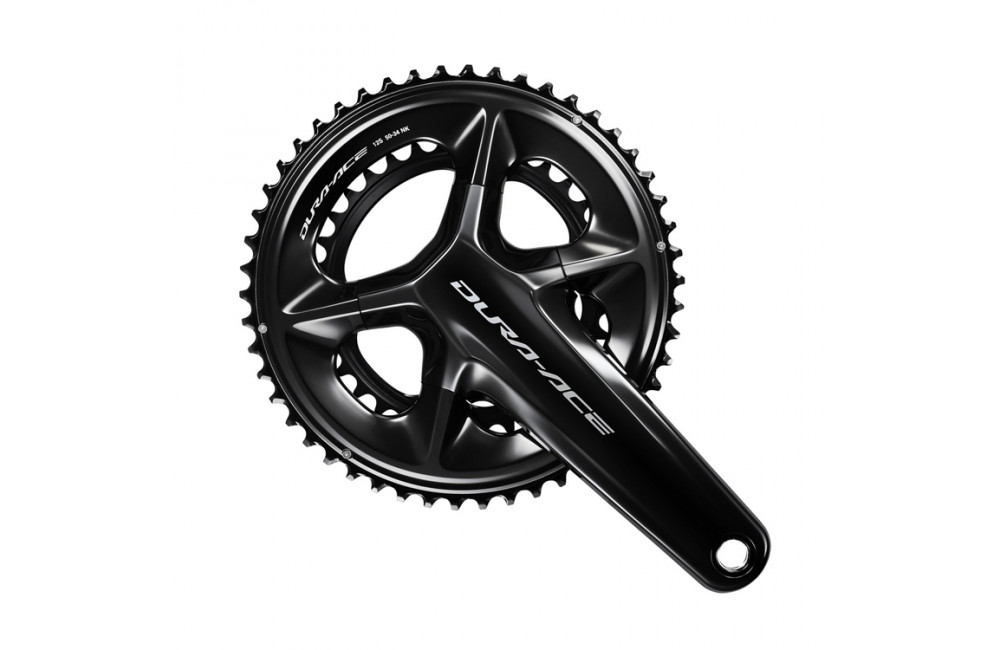

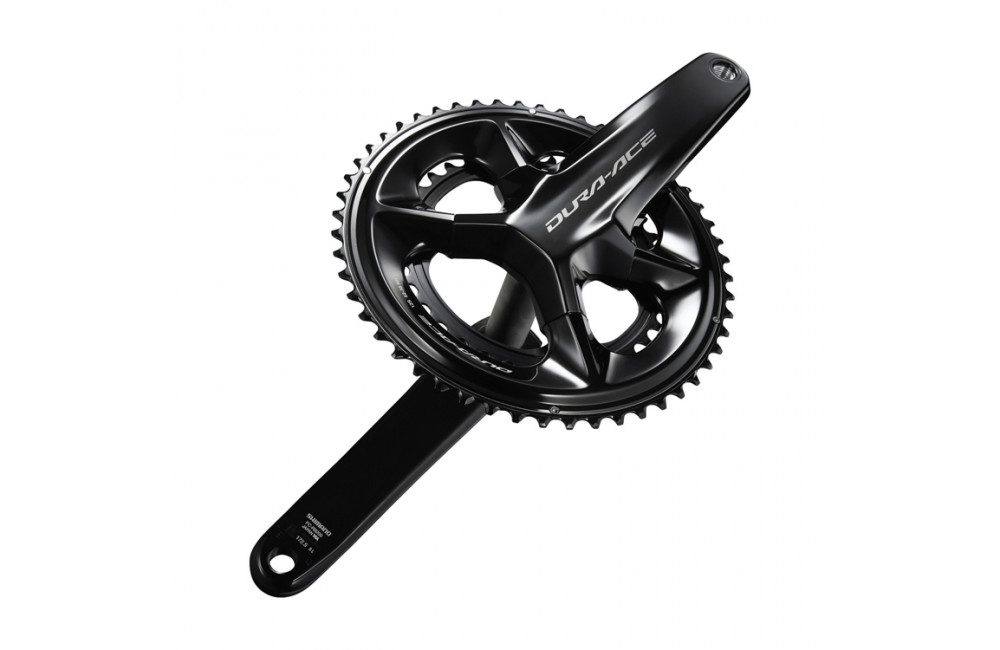

Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 50/34T 175mm

Reference: IFCR9200EX04

The DURA-ACE FC-R9200 crankset delivers fast, precise shifting with lightweight crank arms and position adjustment options.





More details

quantity up quantity down

589,99 €

Specifications for Shimano Dura-Ace 12-Speed Road Bike Crankset FC-R9200 (50/34T, 175mm) :

  • Front Gears : 2-speed
  • Rear Gears : 12-speed
  • Compatible Chain : HG 12-speed
  • Chainline : 44.5 mm
  • Bolt Circle Diameter : 110 mm
  • Crank Arms : 4-arm design
  • Q-Factor : 148 mm
  • Crank Arm Length : 175 mm
  • Bottom Bracket Shell Width (Threaded): 68 / 70 mm
  • HOLLOWTECH II : Yes
  • HOLLOWTECH Crank : Yes
  • HOLLOWGLIDE : Yes
  • Compatible Bottom Bracket Type : External
  • Average Weight : 685 g


Integrated Technology :

HOLLOWTECH II System : Combines stiffness, lightweight design, and optimized rotation performance for efficient power transfer. The integrated spindle and hollow crank arms improve rigidity while reducing weight. High-precision sealed bearings enhance durability and smooth rotation.

HOLLOWGLIDE : High-rigidity hollow construction reduces weight while maintaining strength. This ensures better power transfer and faster, more precise front shifting.
