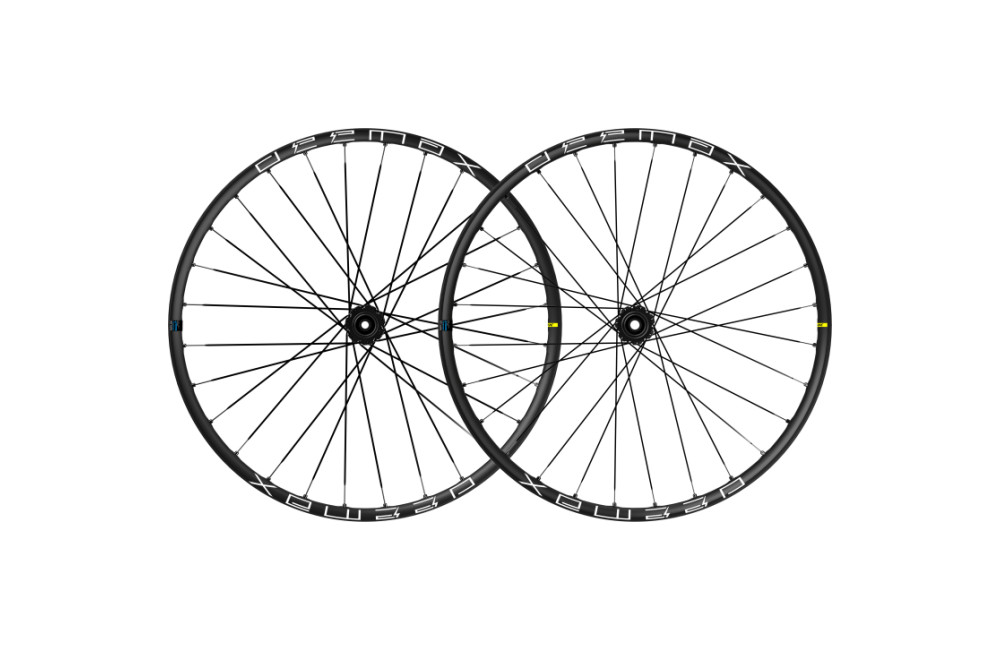

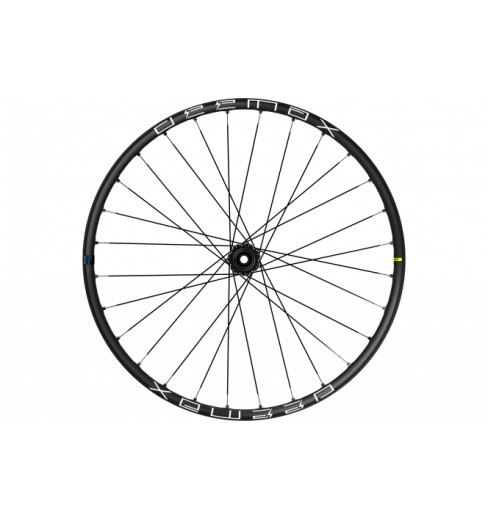

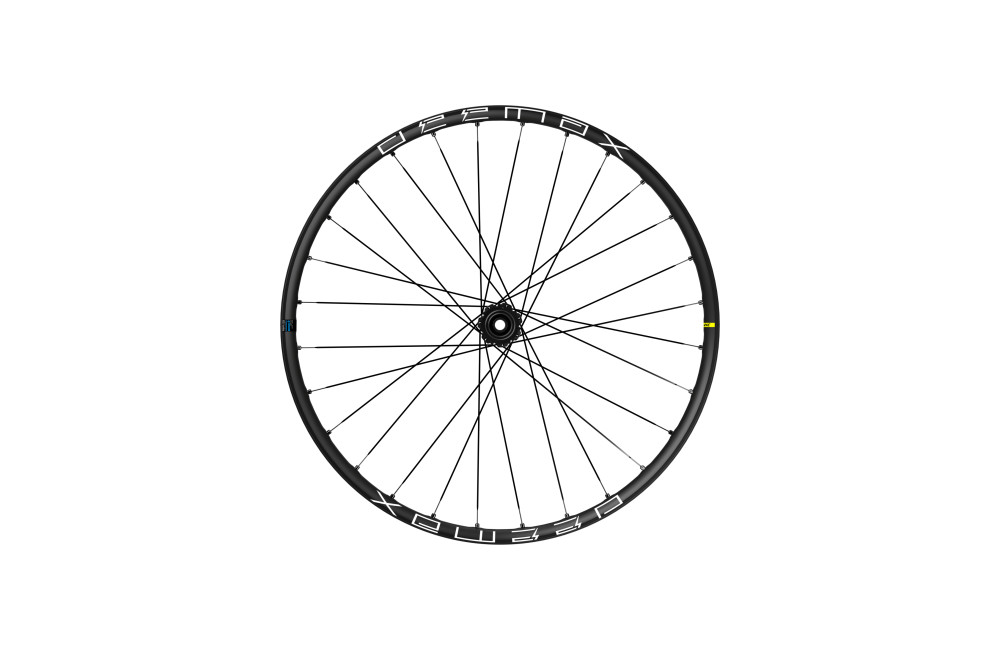

MAVIC E-DEEMAX S 35 27.5 Boost front electric mountain bike wheel

The large rim width (35 mm internal) is optimized to allow you to reduce your tire pressure and maximize grip, efficiency and comfort on trails. The rim profile is optimized for modern trail tires from 2.6 to 3.2''.

Features of the MAVIC E-DEEMAX S 35 27.5 front electric mountain bike wheel :

Rims :

•     Material: Maxtal
•     Height: 22 mm
•     Joint: SUP welding technology
•     Internal width: 35 mm
•     Drilling : Fore tapeless tubeless technology (front/rear 28 holes)
•     Braking: disc
•     Profile: asymmetrical
•     ETRTO size: 584x35TC
•     Tire: UST Tubeless Ready

Spokes :

•     Material: steel
•     Shape: straight, extra-flat, ADR + constricted (front)
•     Shape: straight, flat, constricted, antirot (rear)
•     Nipples: brass, black
•     Screw: M7
•     Lacing: crossed 3 (front and rear)

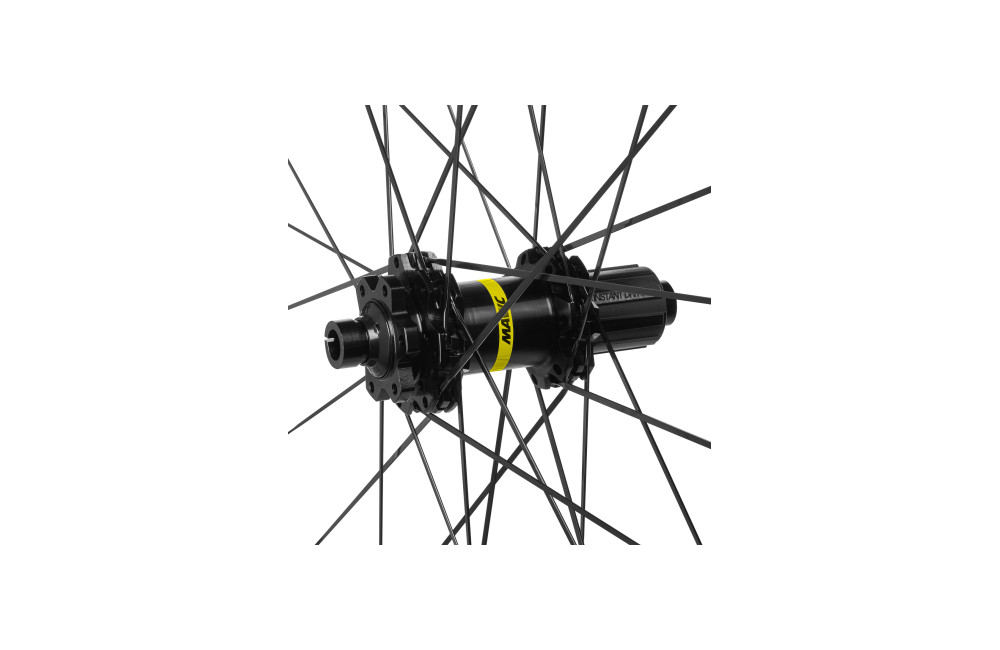

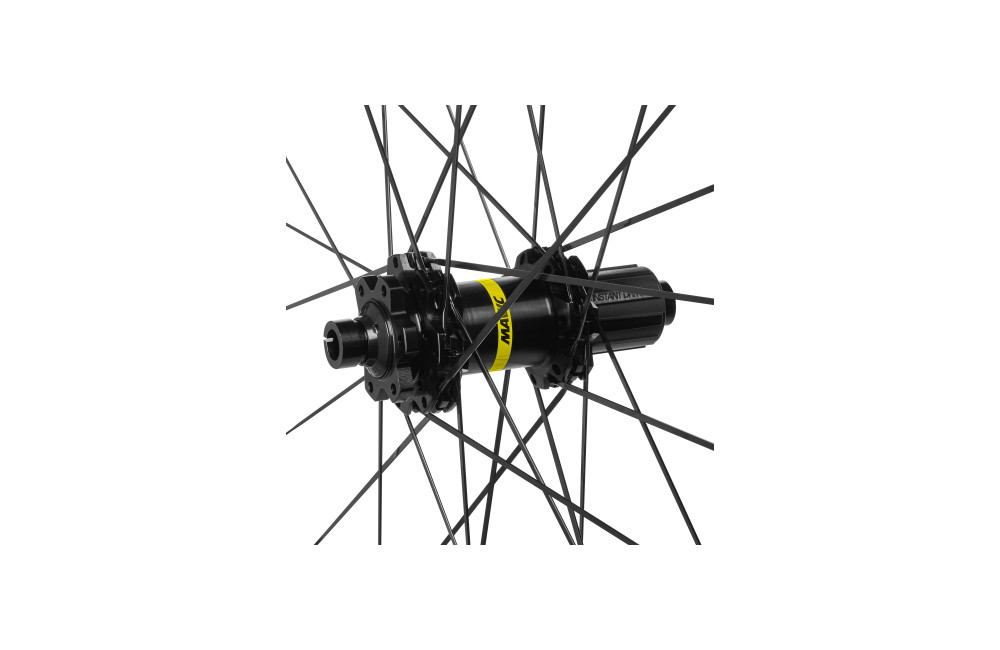

Hubs :

•     Body material: aluminium
•     Disc standard : 6 Bolts or Center Lock®
•     Axle material: aluminum
•     Axle size: front 15x110 / rear 12x148
•     Freewheel technology: Instant Drive 360
•     Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
•     Bearing technology: QRM automatic setting - sealed cartridge

Compatibility :

•     Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
•     Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
•     Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
•     Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)

Intented use :

• Minimum tyre size: width 54mm - pressure max. 2.55Bar/37PSI
• Maximum tyre size: width 64mm - pressure max. 1.3Bar/19PSI
• ASTM category 5 : gravity riding focused on the descent
