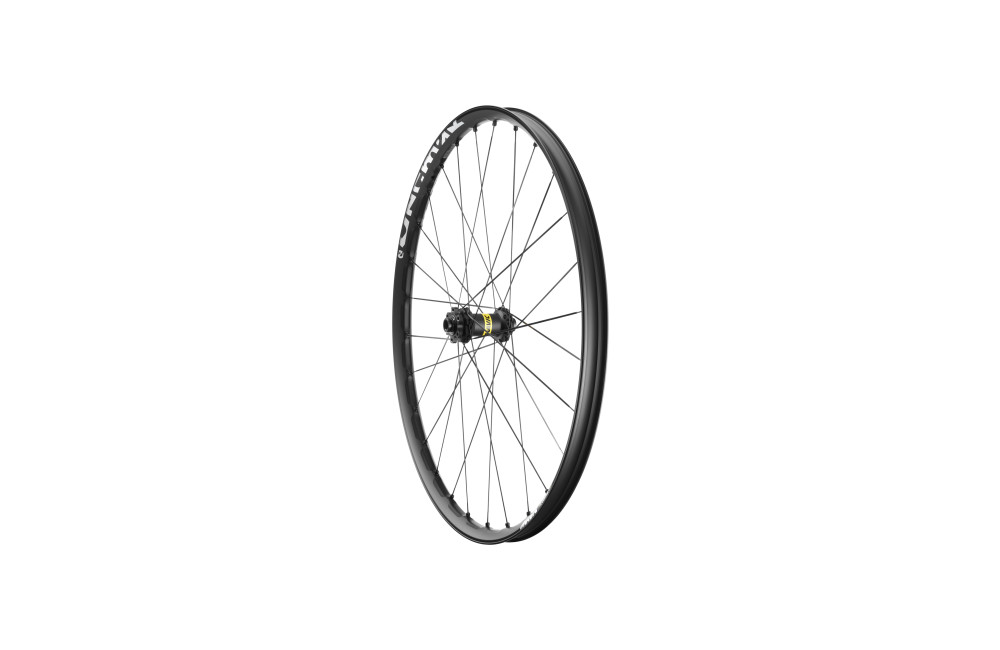

MAVIC E-DEEMAX S 27.5 Boost front electric mountain bike wheel

Features of the MAVIC E-DEEMAX S 27.5 electric mountain bike wheel :

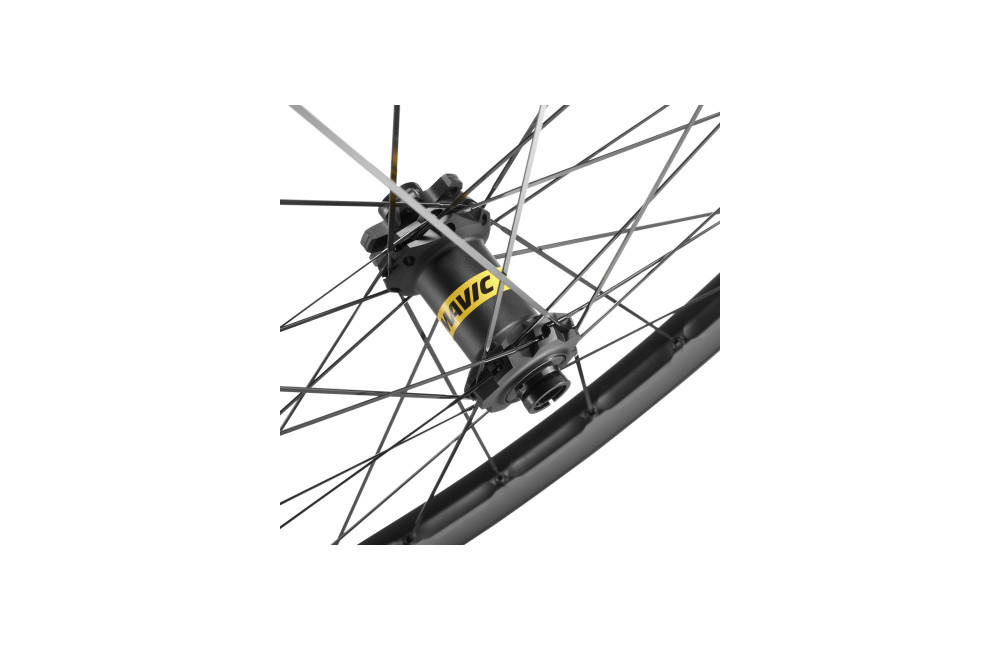

Hubs :

•  Freewheel technology: Instant Drive 360
•  Bearing technology: QRM automatic adjustment - sealed cartridge
•  Axle size: front 15x110 / rear 12x148
•  Axle material: aluminum
•  Body material: aluminum
•  Freewheel: Shimano MS / Sram XD MTB
•  Body Design: INFINITY
•  Disc standard: 6-hole or Center Lock®

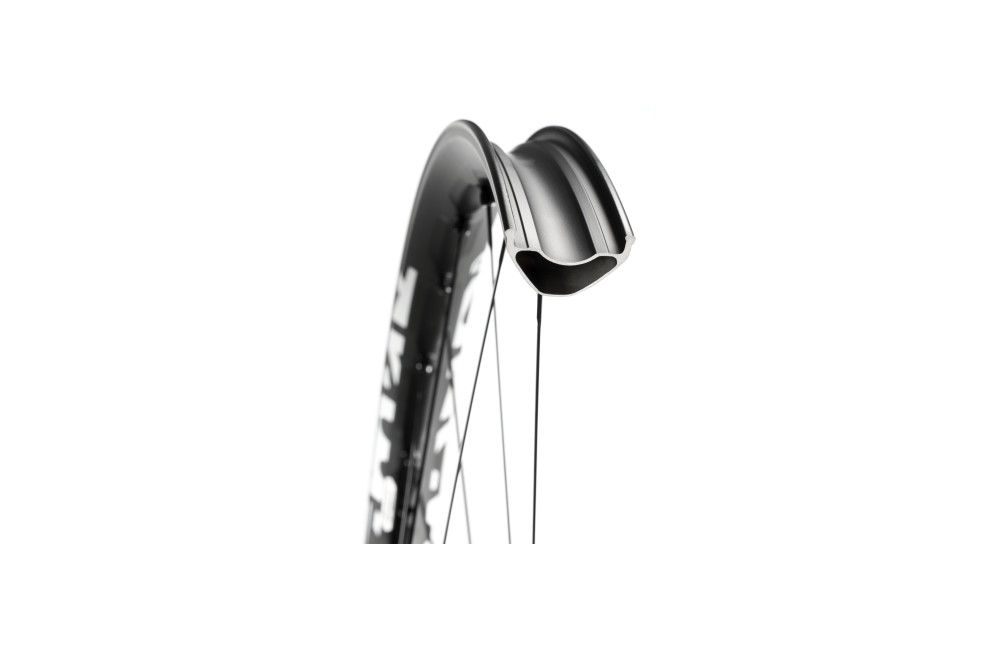

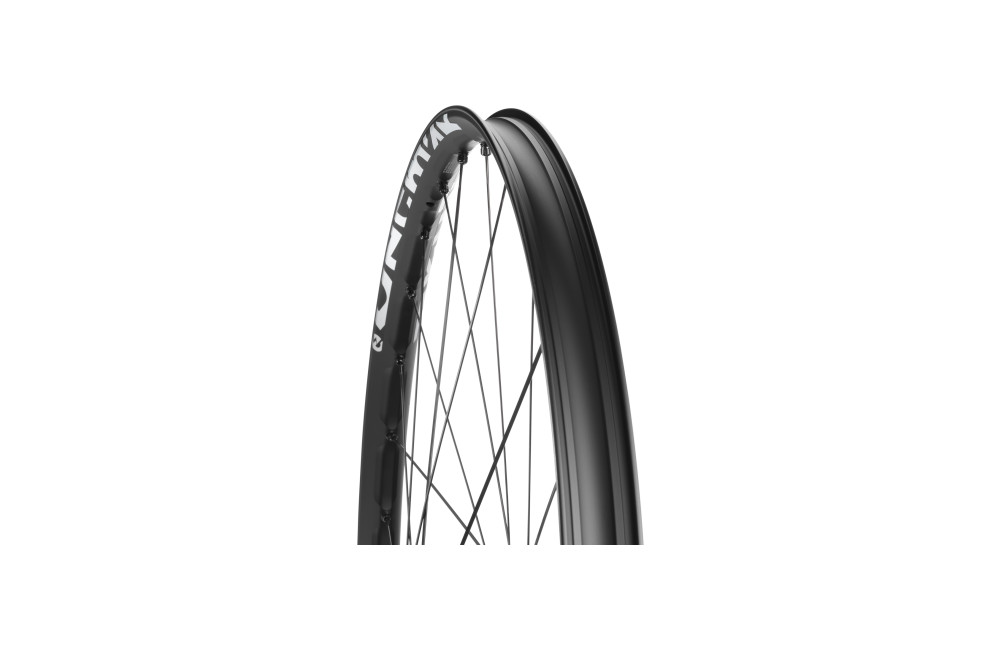

Rim :

•  Material: Maxtal
•  Tire: UST Tubeless Ready
•  Braking: disc
•  Joint: SUP welding technique
•  Height: 22mm
•  Internal width: 30 mm
•  Profile: asymmetrical
•  ETRTO size: 584x30TC
•  Drilling: Fore tubeless technology without rim tape (front/rear 28 holes)

Spockes :

•  Shape: straight, extra-flat, tapered, anti-rotation (front)
•  Shape: straight, flat, anti-rotation (rear)
•  Material: steel
•  Nuts: brass, black
•  Shelving: crossed by 3 (rear)
•  Screw: M7

Delivered with :

•  User guide
•  UST valve not mounted on the wheel
•  2 Multifunction adjustment key with rear wheel
•  2 replacement spokes per wheel

Intended use :

•  ASTM category 5: gravity riding focused on downhill
•  Minimum tire size: width 52mm - max. pressure. 2.95Bar/43PSI
•  Maximum tire size: width 76mm - max. pressure. 2.45Bar/36PSI
•  Maximum weight supported by the wheels: must not exceed 180 Kg (weight of the bike included)

Compatibility :

•  Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
•  Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
•  Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
•  Freewheel body: convertible SHIMANO HG MTB aluminum (kit V3780101 sold separately)
•  Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
