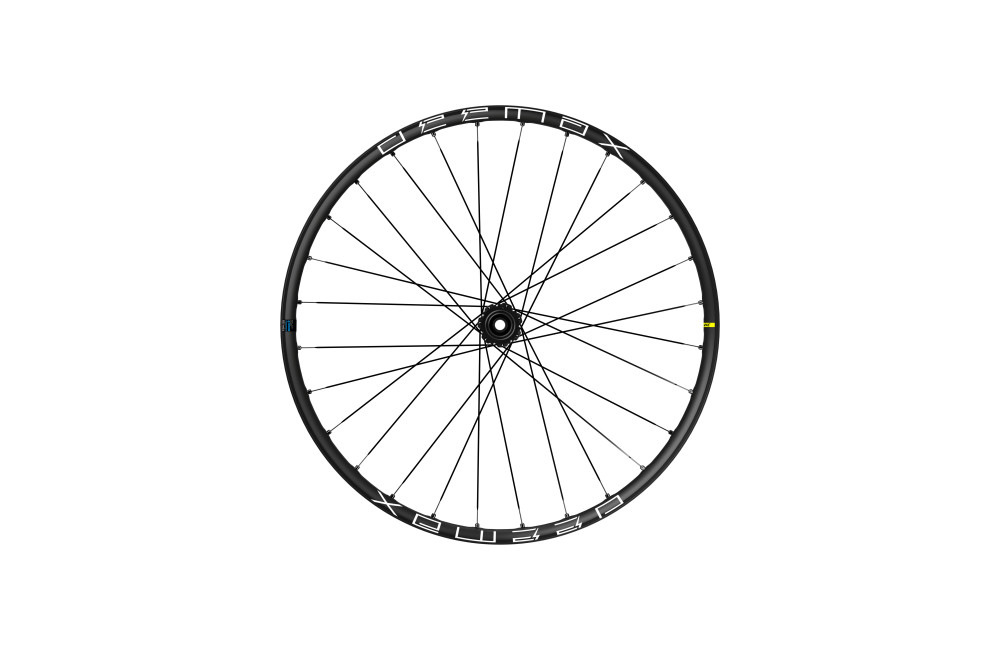

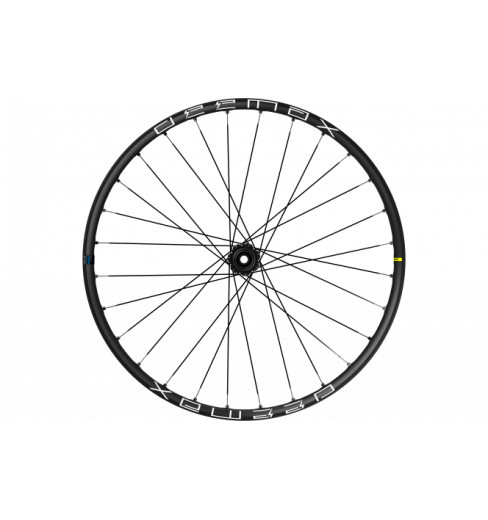

MAVIC E-DEEMAX S 30 29 Boost front electric mountain bike wheel

Features of the MAVIC E-DEEMAX S 30 29 electric mountain bike wheel :

Rims :

•     Material: Maxtal
•     Height: 22 mm
•     Joint: SUP welding technology
•     Internal width: 30 mm
•     Drilling : Fore tapeless tubeless technology (front/rear 28 holes)
•     Braking: disc
•     Profile: asymmetrical
•     ETRTO size: 622x30TC
•     Tire: UST Tubeless Ready

Spokes :

•     Material: steel
•     Shape: straight, extra-flat, ADR + constricted (front)
•     Shape: straight, flat, constricted, antirot (rear)
•     Nipples: brass, black
•     Screw: M7
•     Lacing: crossed 3 (front and rear)

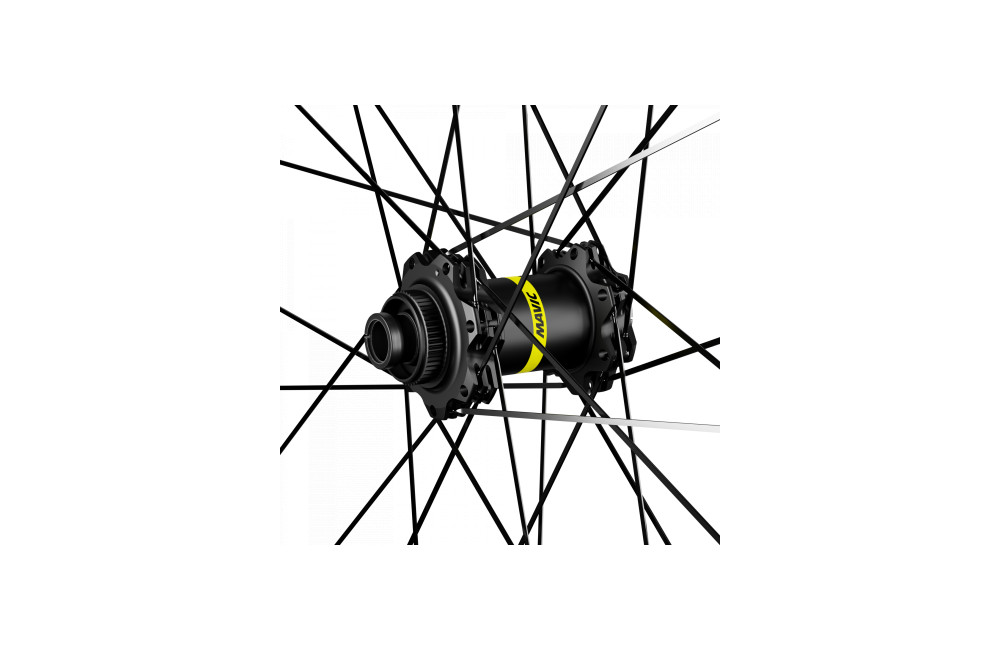

Hubs :

•     Body material: aluminium
•     Disc standard : 6 Bolts or Center Lock®
•     Axle material: aluminum
•     Axle size: front 15x110 / rear 12x148
•     Freewheel technology: Instant Drive 360
•     Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
•     Bearing technology: QRM automatic setting - sealed cartridge

Compatibility :

•     Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
•     Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
•     Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
•     Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)

Delivered with :

•     User guide
•     UST valve not mounted on wheel
•     2 replacement spokes with each wheel
•     Speed sensor magnet with the rear wheel
•     2 Multifonction adjustment wrench with the rear wheel

Intended use :

•     Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
•     Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
•     ASTM category 5 : gravity riding focused on the descent
•     Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
