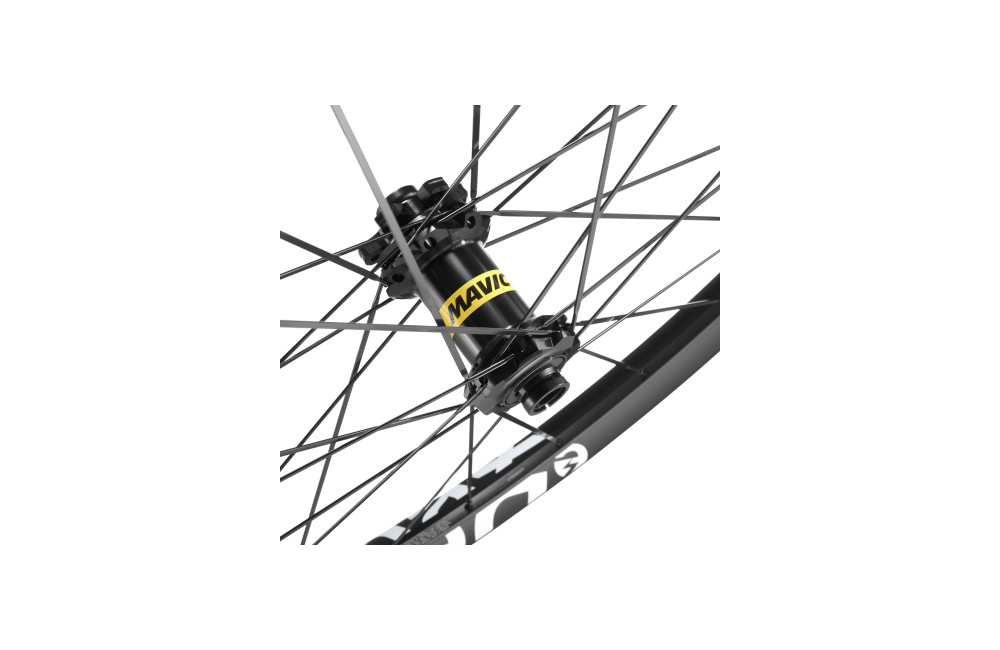

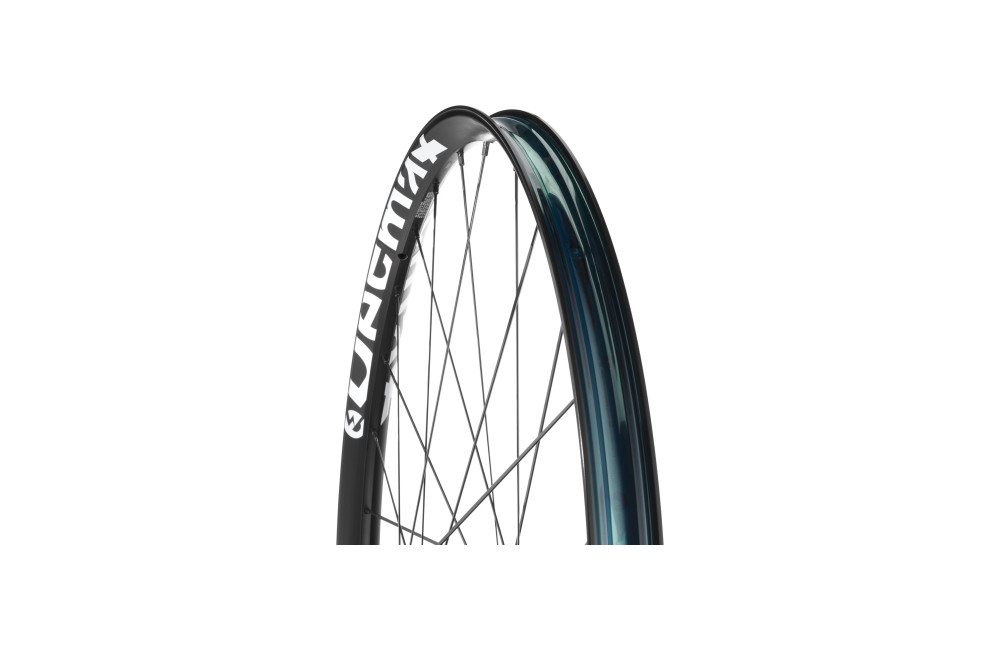

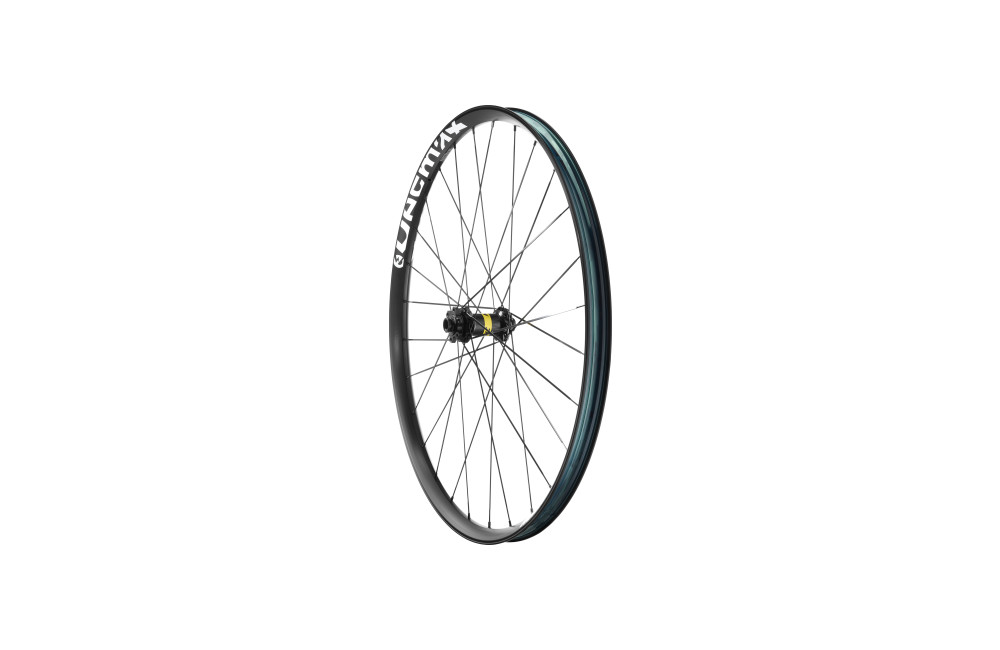

MAVIC E-DEEMAX 35 27.5 Boost front electric mountain bike wheel

Its Pinch Flat Protection technology reduces the risk of pinch punctures thanks to an enlarged contact surface between the tire and the rim. The wheel, welded and Tubeless Ready with an internal width of 35 mm, allows you to reduce tire pressure to improve traction and control.

Tested in the laboratory and in the field for a maximum load of 180 kg, the E-Deemax 35 is equipped with the Instant Drive 360 freehub body, offering rapid engagement and high reliability. Compatible with HG9, Micro Spline and SRAM . It comes with valves, spare spokes and accessories.


Features of the MAVIC E-DEEMAX 35 27.5 electric mountain bike wheel :

Rims :

•     Material: Maxtal
•     Height: 22 mm
•     Joint: SUP welding technology
•     Internal width: 35 mm
•     Drilling: traditional (front/rear 28 holes)
•     Braking: disc
•     Profile: asymmetrical
•     ETRTO size: 584x35TC
•     Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape

Spokes :

•     Material: steel
•     Shape: straight, extra-flat, ADR + constricted (front)
•     Shape: straight, flat, constricted, antirot (rear)
•     Nipples: steel, ABS, black
•     Lacing: crossed 3 (front and rear)

Hubs :

•     Body material: aluminium
•     Disc standard : 6 Bolts or Center Lock®
•     Axle material: aluminum
•     Axle size: front 15x110 / rear 12x148
•     Freewheel technology: Instant Drive 360
•     Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
•     Bearing technology: QRM automatic setting - sealed cartridge

Compatibility :

•     Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
•     Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
•     Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
•     Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)

Intented use :

•     Minimum tyre size: width 54mm - pressure max. 2.55Bar/37PSI
•     Maximum tyre size: width 64mm - pressure max. 1.3Bar/19PSI
•     ASTM category 5 : gravity riding focused on the descent
•     Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
