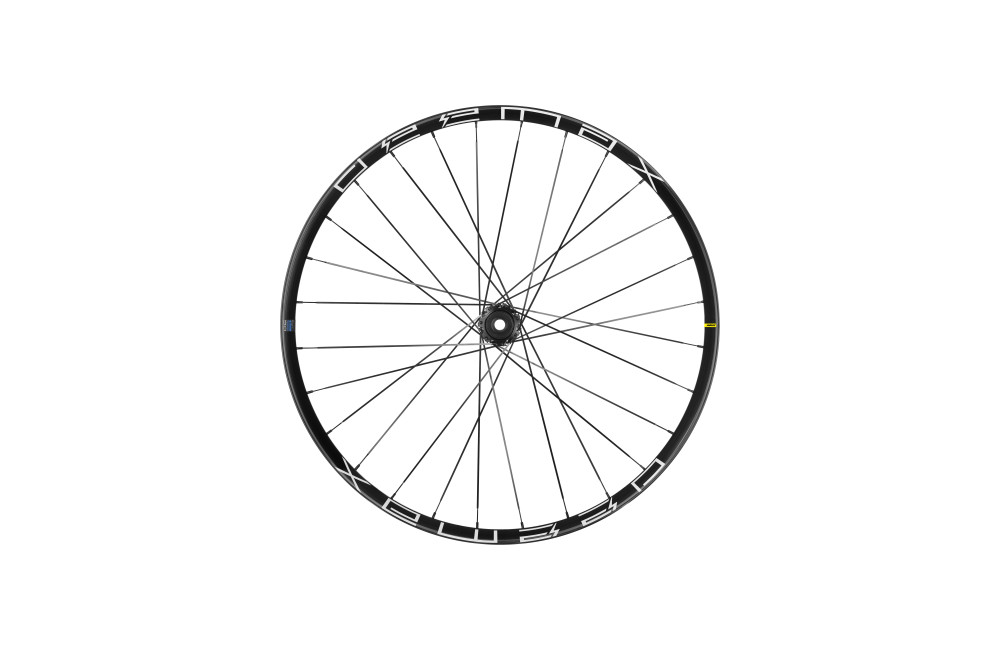

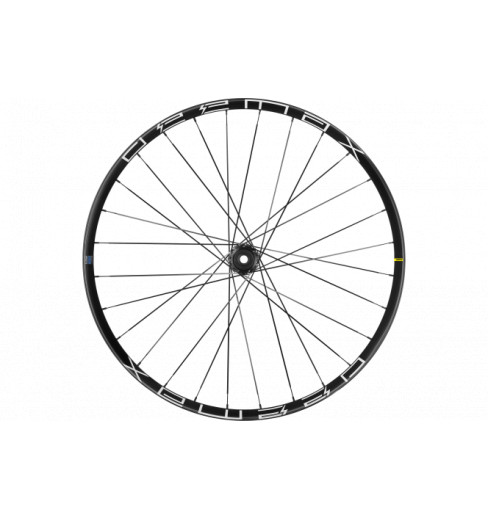

MAVIC E-DEEMAX 30 29 Boost front electric mountain bike wheel

The new E-Deemax 30 takes many of the features of its top-of-the-range predecessor, but at a more affordable price. Its Pinch Flat Protection technology reduces pinch flats thanks to a wider contact area between tire and rim. The welded, tubeless-ready wheel, with a 30mm internal width, reduces tire pressure for improved traction and control.

Laboratory and field-tested to a maximum load of 180 kg, the E-Deemax 30 is equipped with the Instant Drive 360 freewheel system, offering fast engagement and high reliability. Compatible with HG9, Micro Spline and SRAM XD freewheel bodies, this wheel is available in 29", with 6-hole or Center Lock disc brake options, and compatible with Boost axles (front 15x110 and rear 12x148). Supplied with valves, spare spokes and accessories.


Features of the MAVIC E-DEEMAX 30 29 electric mountain bike wheel :

Rims :

•     Material: Maxtal
•     Height: 22 mm
•     Joint: SUP welding technology
•     Drilling: traditional (front/rear 28 holes)
•     Braking: disc
•     Profile: asymmetrical
•     ETRTO size: 622x30TC
•     Tire: UST Tubeless Ready
•     Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape

Spokes :

•     Material: steel
•     Shape: straight, flat, constricted, antirot (rear)
•     Shape: straight, flat, constricted (front and rear opposite freewheel side)
•     Lacing: crossed 3 (front and rear)

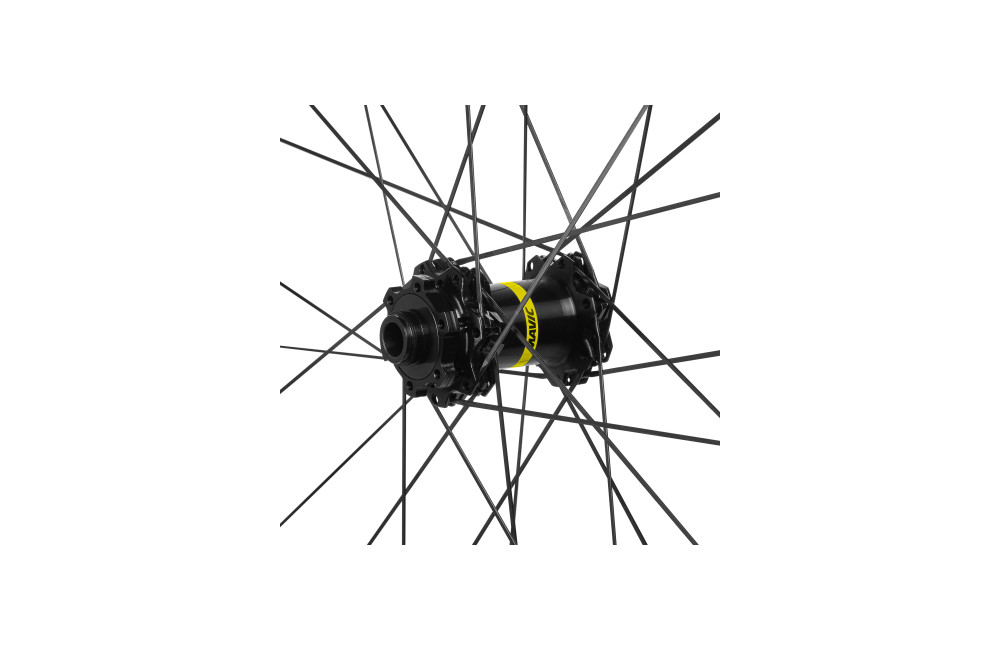

Hubs :

•     Body material: aluminium
•     Disc standard : 6 Bolts or Center Lock®
•     Axle material: aluminum
•     Axle size: front 15x110 / rear 12x148
•     Freewheel technology: Instant Drive 360
•     Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
•     Bearing technology: QRM automatic setting - sealed cartridge

Compatibility :

•     Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
•     Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
•     Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
•     Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)

Intended use :

•     Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
•     Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
•     ASTM category 5 : gravity riding focused on the descent
•     Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
