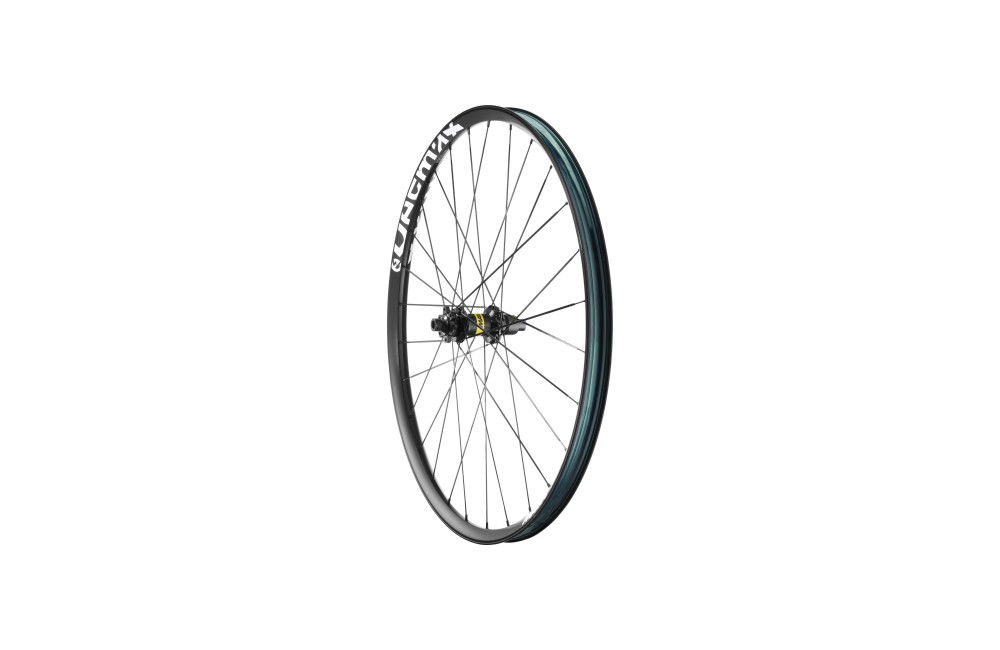

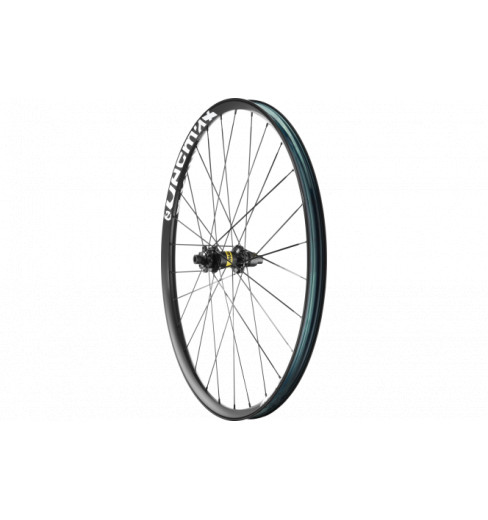

MAVIC E-DEEMAX 27.5 Boost rear electric mountain bike wheel

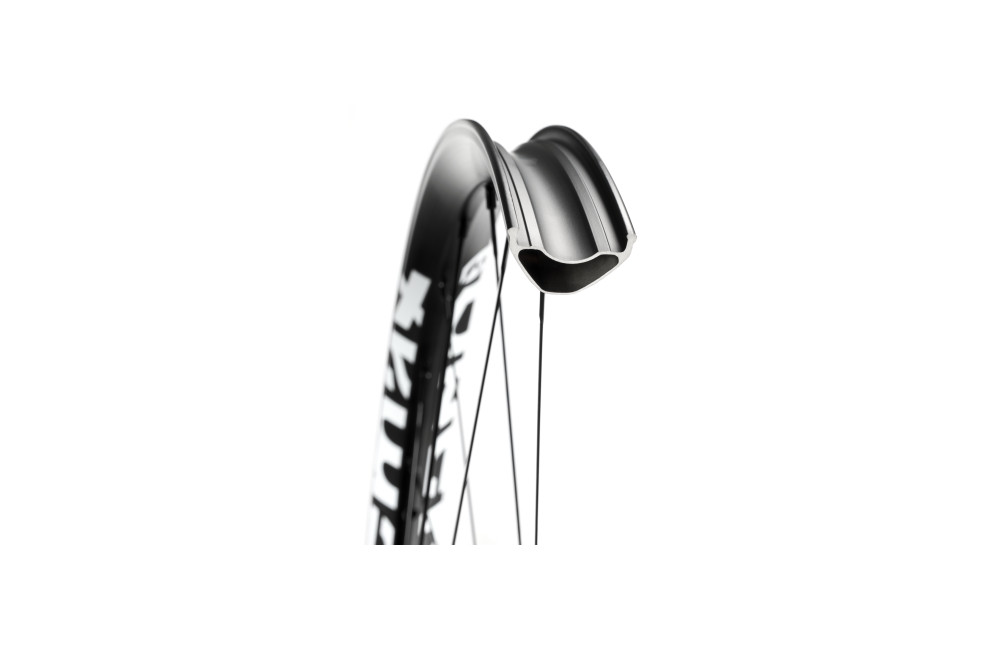

Its new rim profile, equipped with Pinch Flat Protection technology, reduces the risk of punctures and facilitates tire installation. The welded and Tubeless Ready rim, with an internal width of 30 mm, allows better traction and optimized control. The wheel, tested in the laboratory and in the field, supports up to 180 kg and is equipped with the Infinity 28-hole hub and the Instant Drive 360 freewheel system for quick engagement and high reliability.

Features of the MAVIC E-DEEMAX 27.5 electric mountain bike wheel :

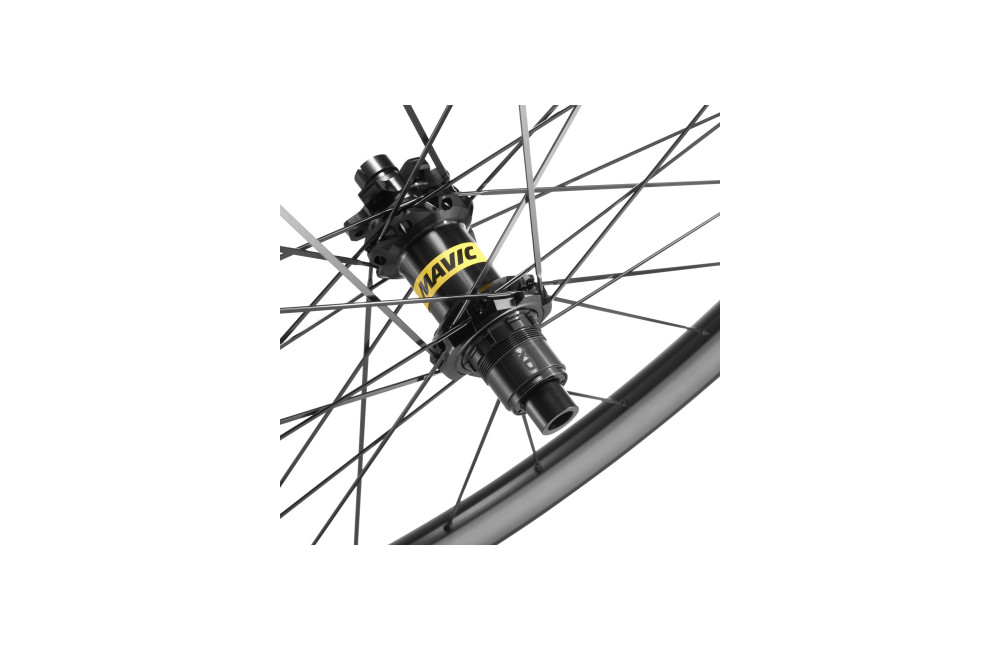

Hubs :

•  Freewheel technology: Instant Drive 360
•  Bearing technology: QRM automatic adjustment - sealed cartridge
•  Axle size: front 15x110 / rear 12x148
•  Axle material: aluminum
•  Body material: aluminum
•  Freewheel: Shimano MS / Sram XD MTB
•  Body Design: INFINITY
•  Disc standard: 6-hole or Center Lock®

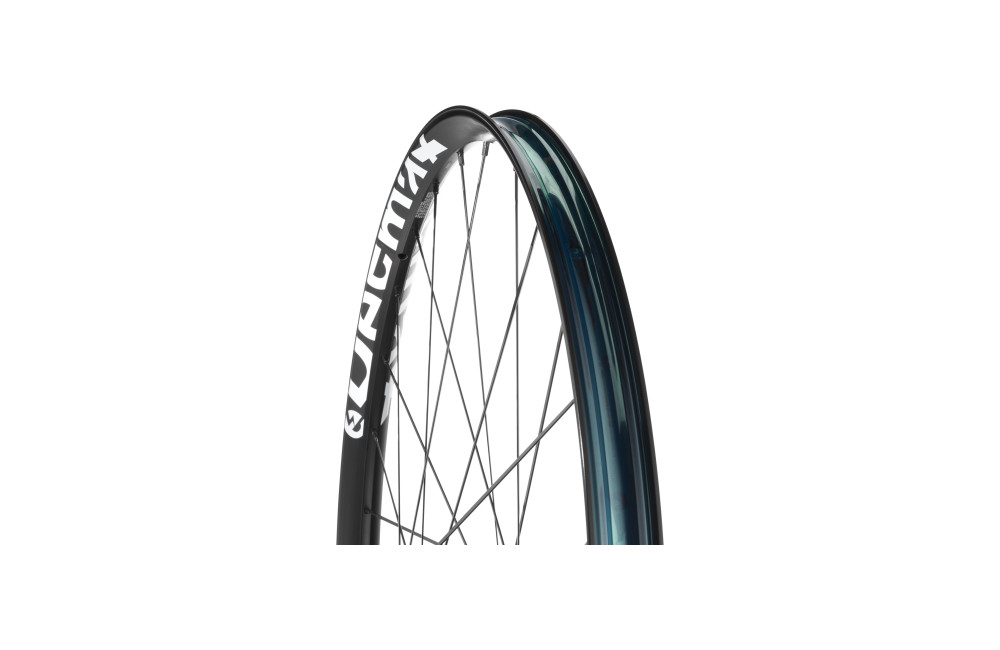

Rim :

•  Material: Maxtal
•  Tire: UST Tubeless Ready - Use with Mavic tubeless rim tape
•  Braking: disc
•  Joint: SUP welding technique
•  Height: 22mm
•  Internal width: 30 mm
•  Profile: asymmetrical
•  ETRTO size: 584x30TC
•  Drilling: traditional (front/rear 28 holes)

Delivered with :

•  User guide
•  UST valve not mounted on the wheel
•  UST rim tape mounted on the wheel
•  Multifunction adjustment wrench with rear wheel
•  2 replacement spokes per wheel

Spokes :

•  Material: steel
•  Nipples : steel, ABS, black
•  Shelving: crossed by 3 (rear)
•  Shape: straight, flat, anti-rotation (front and rear)

Intended use :

•  ASTM category 5: gravity riding focused on downhill
•  Minimum tire size: width 52mm - max. pressure. 2.95Bar/43PSI
•  Maximum tire size: width 76mm - max. pressure. 2.45Bar/36PSI
•  Maximum weight supported by the wheels: must not exceed 180 Kg (weight of the bike included)

Compatibility :

•  Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
•  Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
•  Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
•  Freewheel body: convertible SHIMANO HG MTB aluminum (kit V3780101 sold separately)
•  Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
