MAVIC ALLROAD DISC rear wheel

This dependable UST gravel wheel gives you the confidence you need to tackle rugged, adventurous paths with smooth control

Rims

• Tire: UST Tubeless and tubetype
• Material: S6000 Aluminum
• Valve hole diameter: 65 mm
• Disc brake specific profile
• Joint: sleeved
• Internal width: 23 mm
• Height: 22 mm
• ETRTO size: 622x23TC

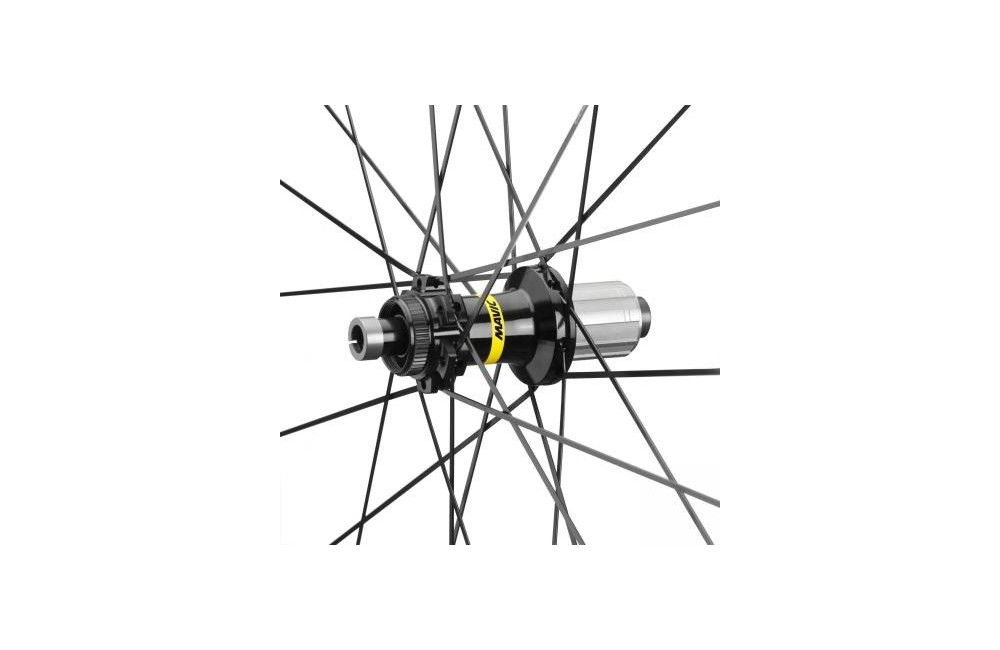

Hubs
Axle material: aluminum
Front and rear bodies: aluminum
Instant Drive 360 freewheel technology
Rear: Quick Release, 12x142
QRM Auto bearing preload technology

Spokes

• Shape: straight pull, round
• Count: 24 front and rear
• Lacing: front and rear crossed 2
• Material: steel
• Nipples: steel, ABS

Intended use

• Recommended tire sizes: 28 to 64 mm (11 to 25)
• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
• Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
• Maximum tyre pressure: 41bar/59PSI with a 28mm tyre - 245bar/36PSI with a 64mm tyre.

Versions

• Color: Black only
• Disc standard : 6 Bolts or Center Lock®
• Freewheel: Shimano/Sram

Compatible Adapters and freewheel bodies

• 12x142 rear axle adapters (V2510701 - Delivered with the wheel)
• 12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
• 12x135 rear axle adapters (V2510901) with axle V2373401
• ID360 Shimano / Sram Light freewheel body (V3850101)
• ID360 Campagnolo freewheel body (V3440101)
• ID360 XD-R freewheel body (V2580101)
• ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
• ID360 N3W freewheel body (V4270101)

DELIVERED WITH

• User guide
• UST valve and accessories
• Pre-installed tubeless rim tape
