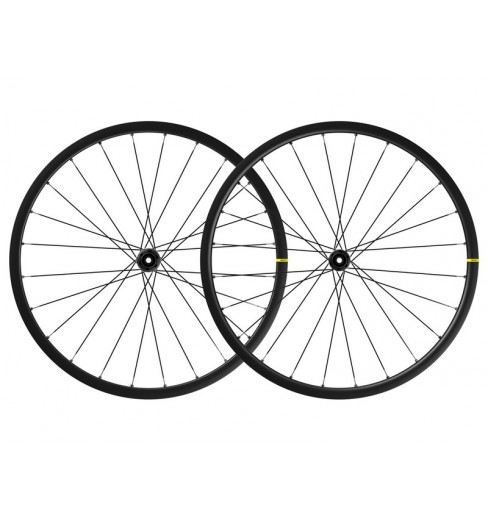

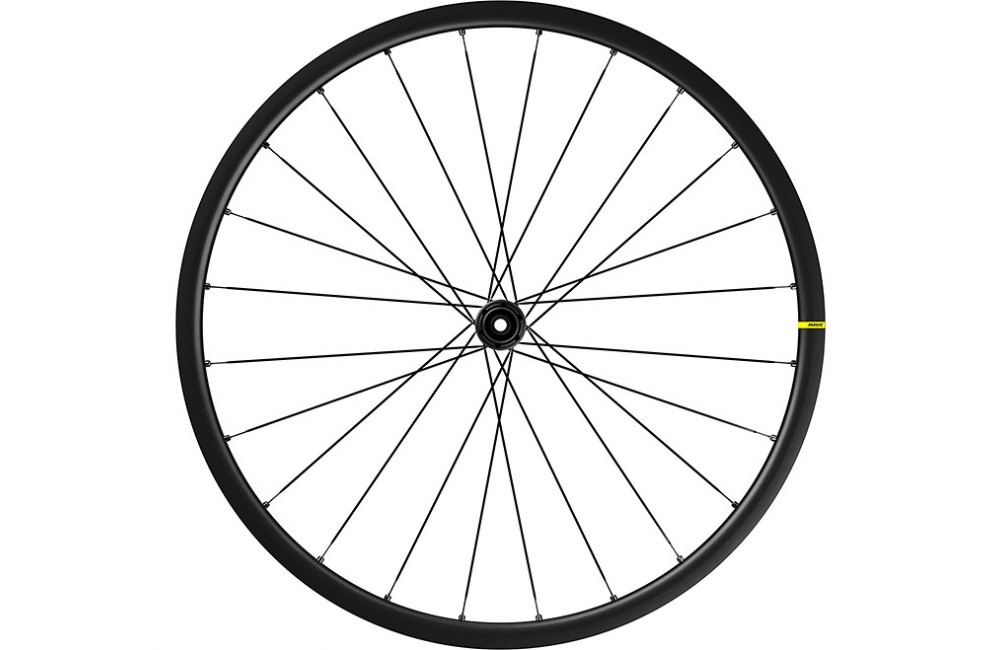

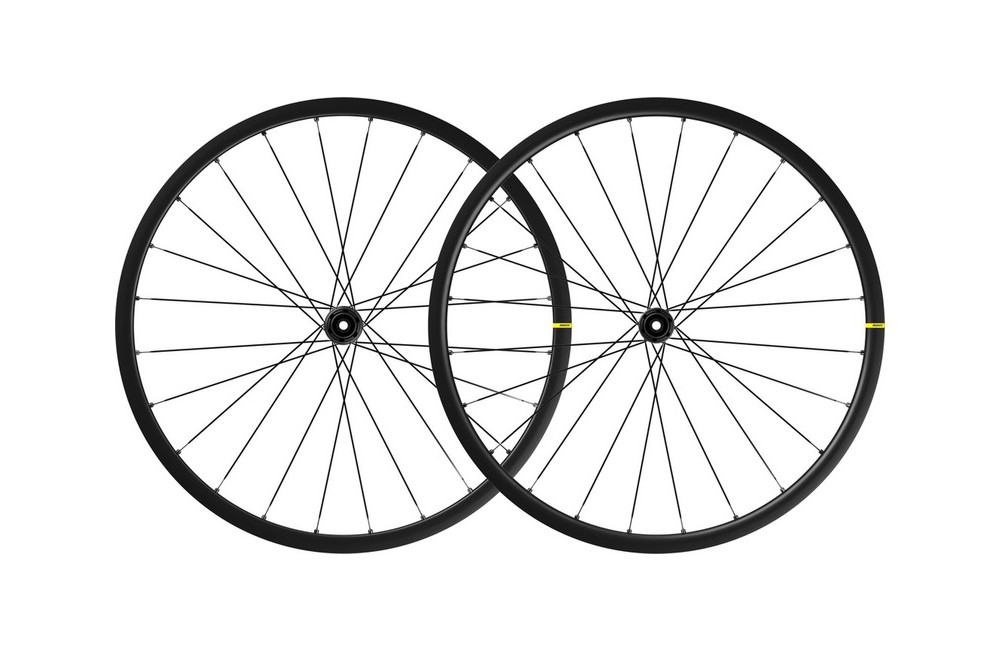

MAVIC Ksyrium S Disc road endurance wheelset

Features of the MAVIC Ksyrium S Disc road endurance wheelset :

Compatibility

•     Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
•     Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
•     Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies

•     ID360 Shimano / Sram freewheel body (LV3430100 - Delivered on the wheel)
•     ID360 XD-R freewheel body (LV2580100)
•     ID360 Campagnolo freewheel body (LV3440100)
•     ID360 Shimano / Sram Light freewheel body (LV3850100)
•     12 to 9mm rear adapter for quick release (LV2510800 - Delivered with the wheel)
•     12x142 rear axle adapters (LV2510700 - Delivered with the wheel)
•     12mm front hub cap (LV2680500 - Delivered with the wheel)
•     12 to 9mm front adapter for quick release (LV2680300)

Weight

•     Pair without tyre: 1670 grams
•     Front without tyre: 750 grams
•     Rear without tyre: 820 grams

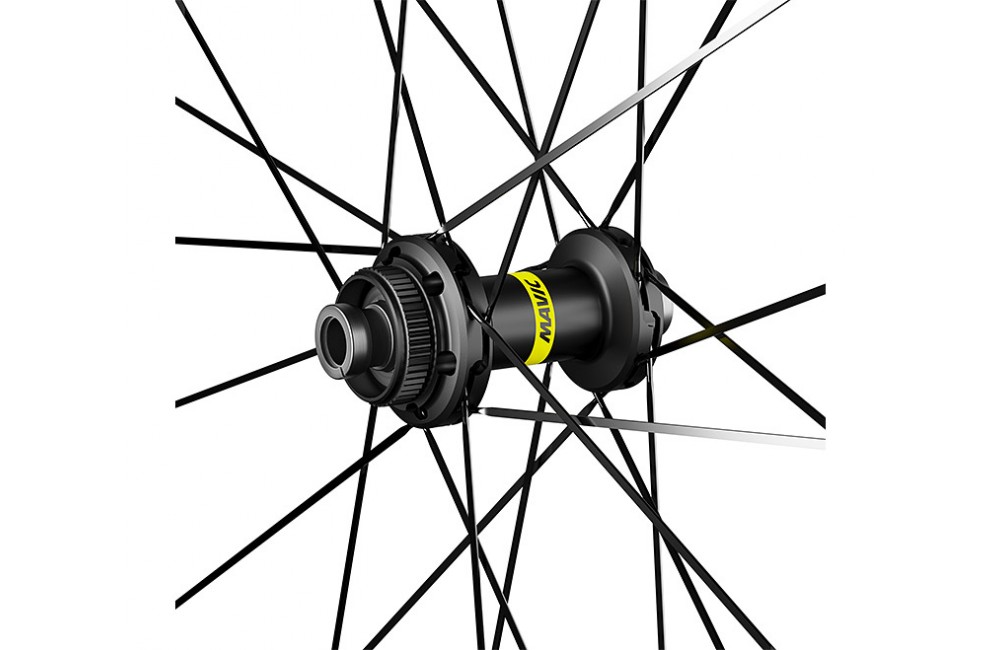

Hubs

•     Infinity Hubs
•     Front: Quick release and 12x100 through axle compatible
•     QRM Auto bearing preload technology
•     Rear: Quick Release, 12x142 and 12x135 compatible
•     Instant Drive 360 freewheel technology
•     Front and rear bodies: aluminum
•     Axle material: aluminum

Intended Use

•     Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
•     For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
•     ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
•     Recommended tyre sizes: 25 to 32 mm

Rims

•     Height: 22 mm
•     ETRTO size: 622x19TC Road
•     UST tubeless technology
•     Fore tapeless tubeless technology
•     SUP welding technology
•     Internal width: 19 mm
•     Disc brake specific profile
•     Tire: UST Tubeless and tubetype
•     Material: Maxtal

Spokes

•     Lacing: front and rear crossed 2, contactless
•     Shape: straight pull, flat, double butted
•     Material: steel
•     Nipples: Fore integrated aluminum
•     Count: 24 front and rear

Versions

•     Freewheel: Shimano/Sram or XD-Road
•     Disc standard: Center Lock (R) only

Delivered with

•     Rear QR adapters for Instant Drive 360
•     Front QR adapters
•     UST valve and accessories
•     User guide

Please note: for security measures of delivery, the wheels are sent by Cycles et Sports only in the European Union. Thank you for your understanding
