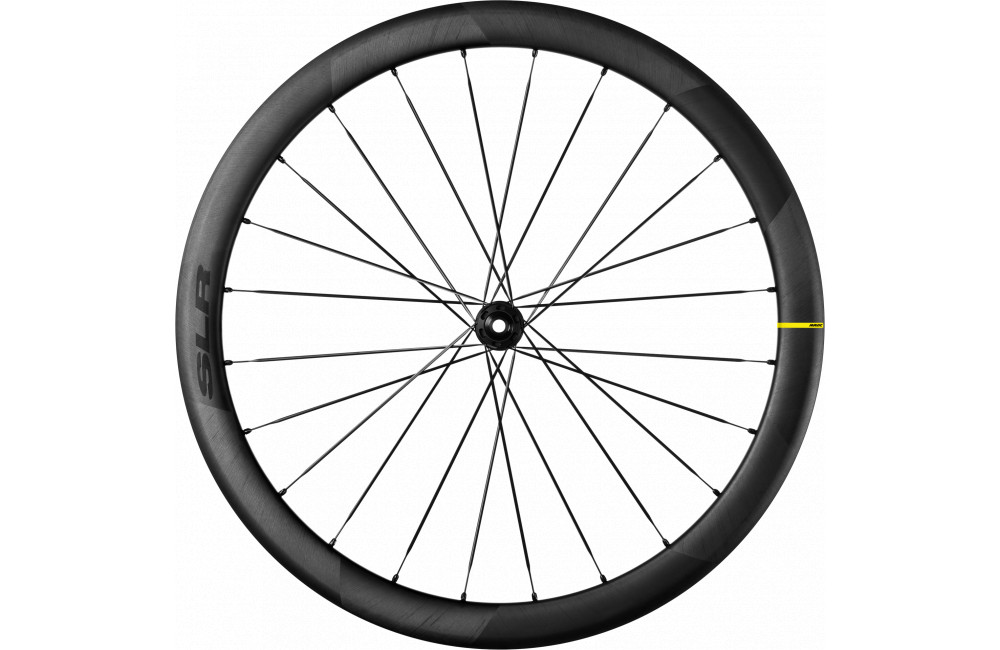

MAVIC Cosmic SLR 45 Disc road front wheel

Features of the MAVIC Cosmic SLR 45 Disc road front wheel :

• Front wheel weight : 655 g

Rims :

•     Material: 100% carbon fiber
•     Height: 45 mm
•     Disc brake specific profile
•     Tire: UST Tubeless and tubetype
•     Internal width: 19 mm
•     ETRTO size: 622x19TC
•     Fore Carbon tapeless tubeless technology
•     UST tubeless technology

Spokes :

•     Material: steel
•     Shape: straight pull, elliptical aero, double butted (patented)
•     Nipples: Fore integrated aluminum
•     Count: 24 front and rear
•     Lacing: front and rear crossed 2, contactless

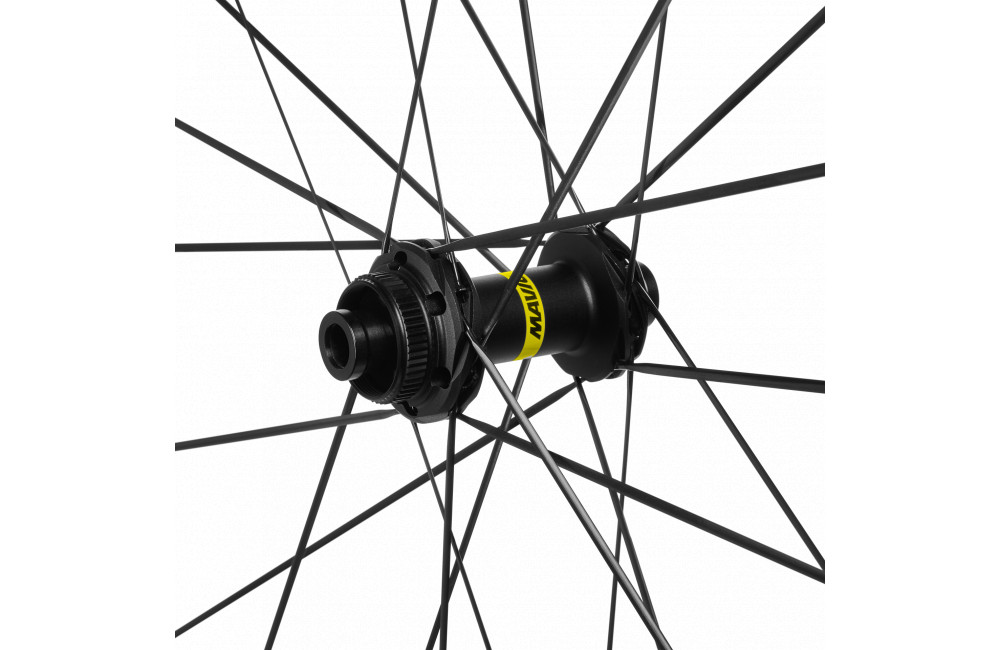

Hubs :

•     Front and rear bodies: aluminum
•     Axle material: aluminum
•     Infinity hubs
•     Front: Quick release and 12x100 through axle compatible
•     Rear: Quick Release, 12x142 and 12x135 compatible
•     Instant Drive 360 freewheel technology
•     QRM Auto bearing preload technology

Versions :

•     Disc standard: Center Lock® only
•     Freewheel: Shimano/Sram or XD-Road

Compatibility :

•     Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
•     Front axle: 12x100 thru axle, easily convertible to quick release with optional adapters Not compatible with 15mm through axles
•     Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters and axle replacement

Compatible Adapters and freewheel bodies :

•     12 to 9mm front adapter for quick release (V2680301)
•     12 to 9mm rear adapter for quick release (V2510801 (with axle V2373401)
•     12x135 rear axle adapters (V2510901) with axle V2373401
•     ID360 Shimano / Sram Light freewheel body (V3850101)
•     ID360 Campagnolo freewheel body (V3440101)
•     ID360 XD-R freewheel body (V2580101)
•     ID360 Shimano / Sram freewheel body (V3430101)

Intended use :

•     ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
•     For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
•     Recommended tire sizes: 25 to 32 mm
•     Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
